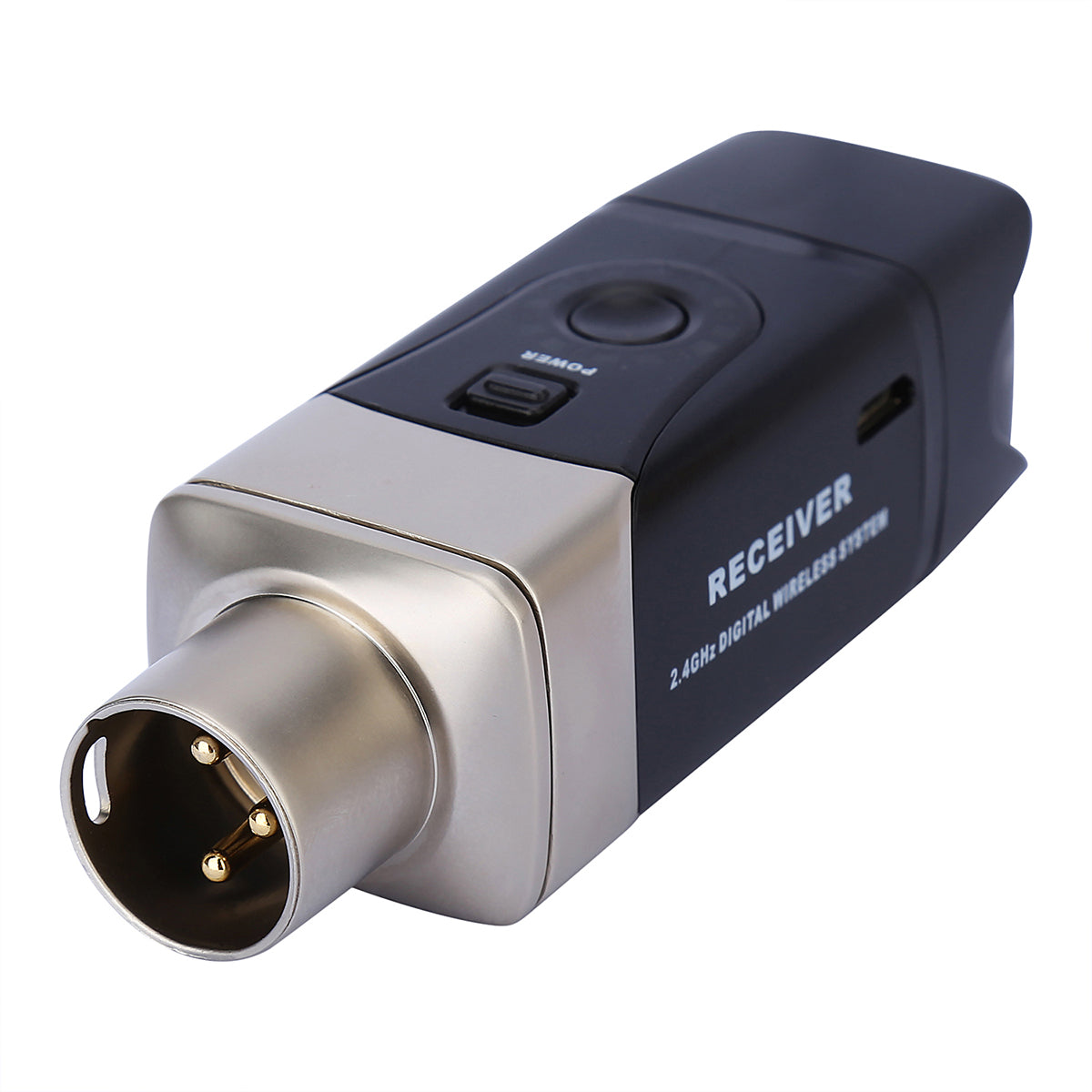

Xvive Microphone Wireless System ~ Receiver

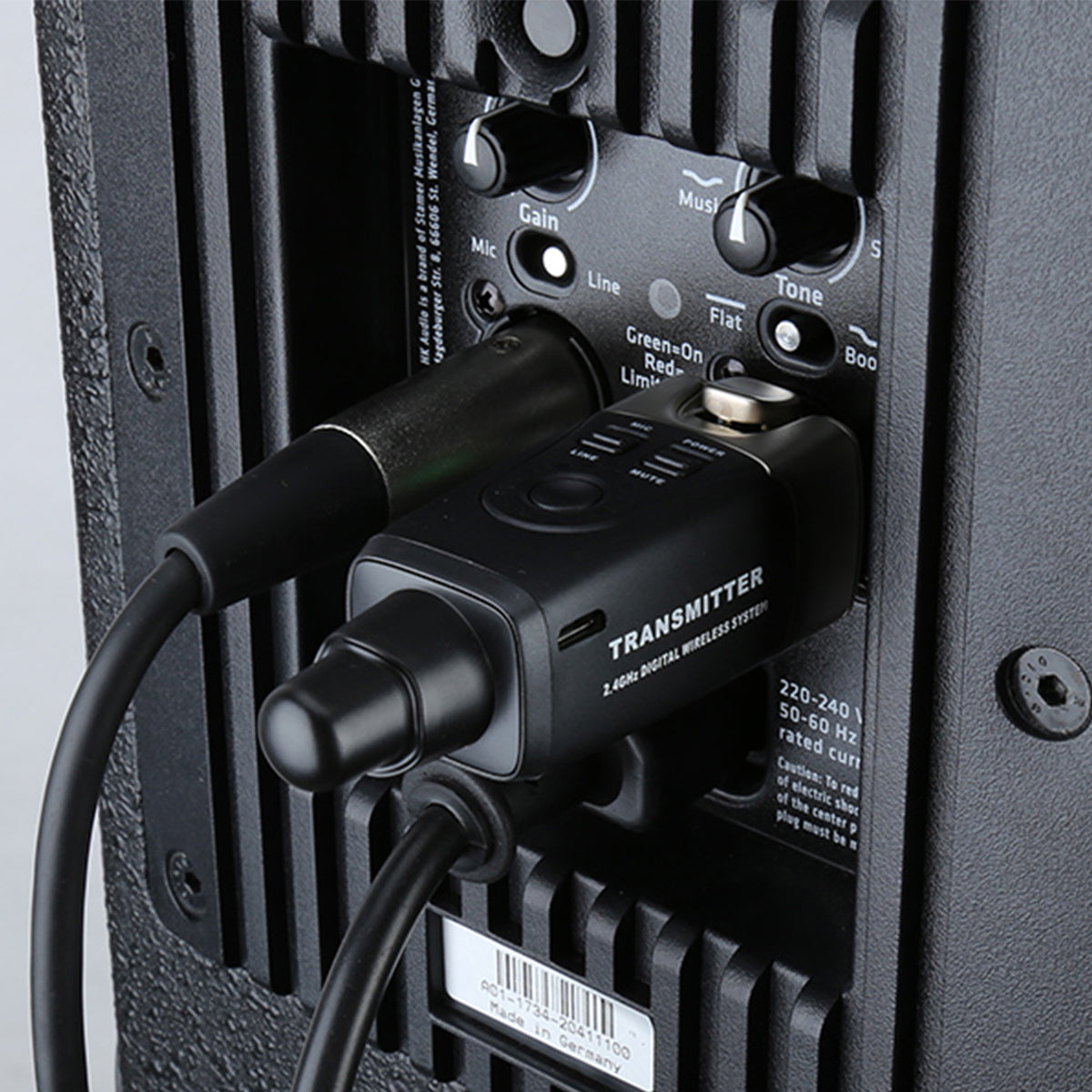

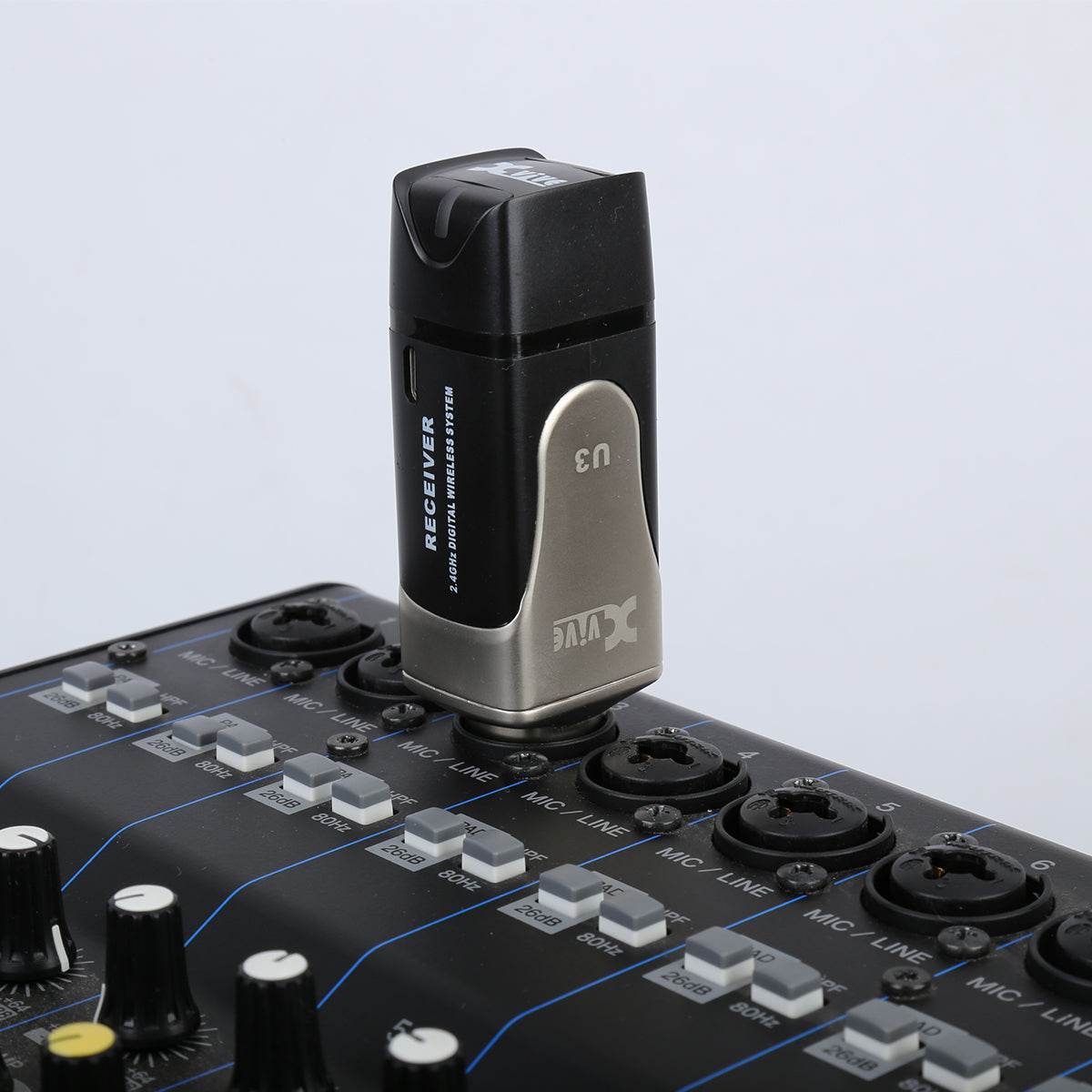

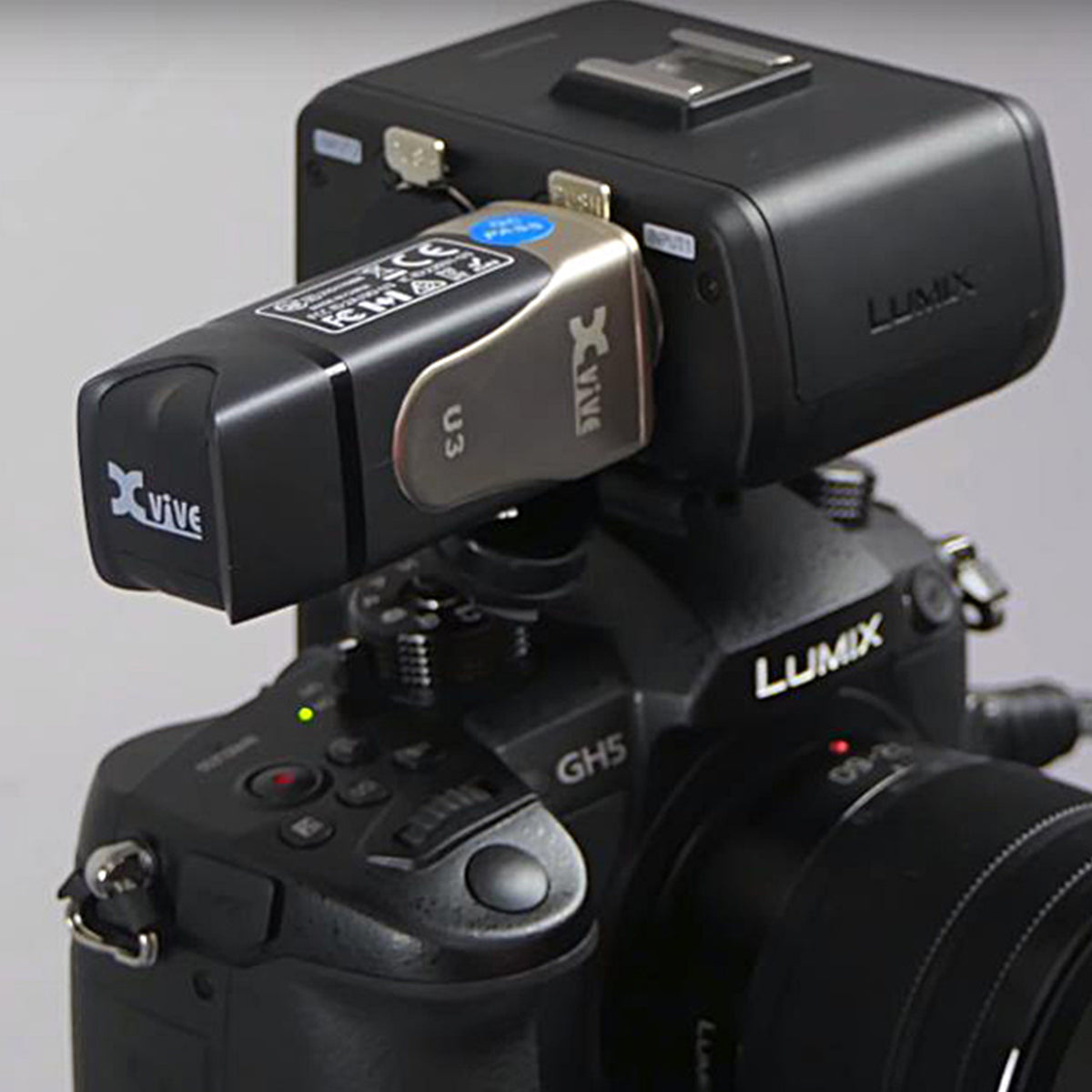

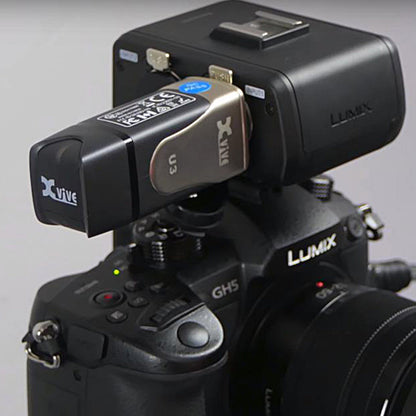

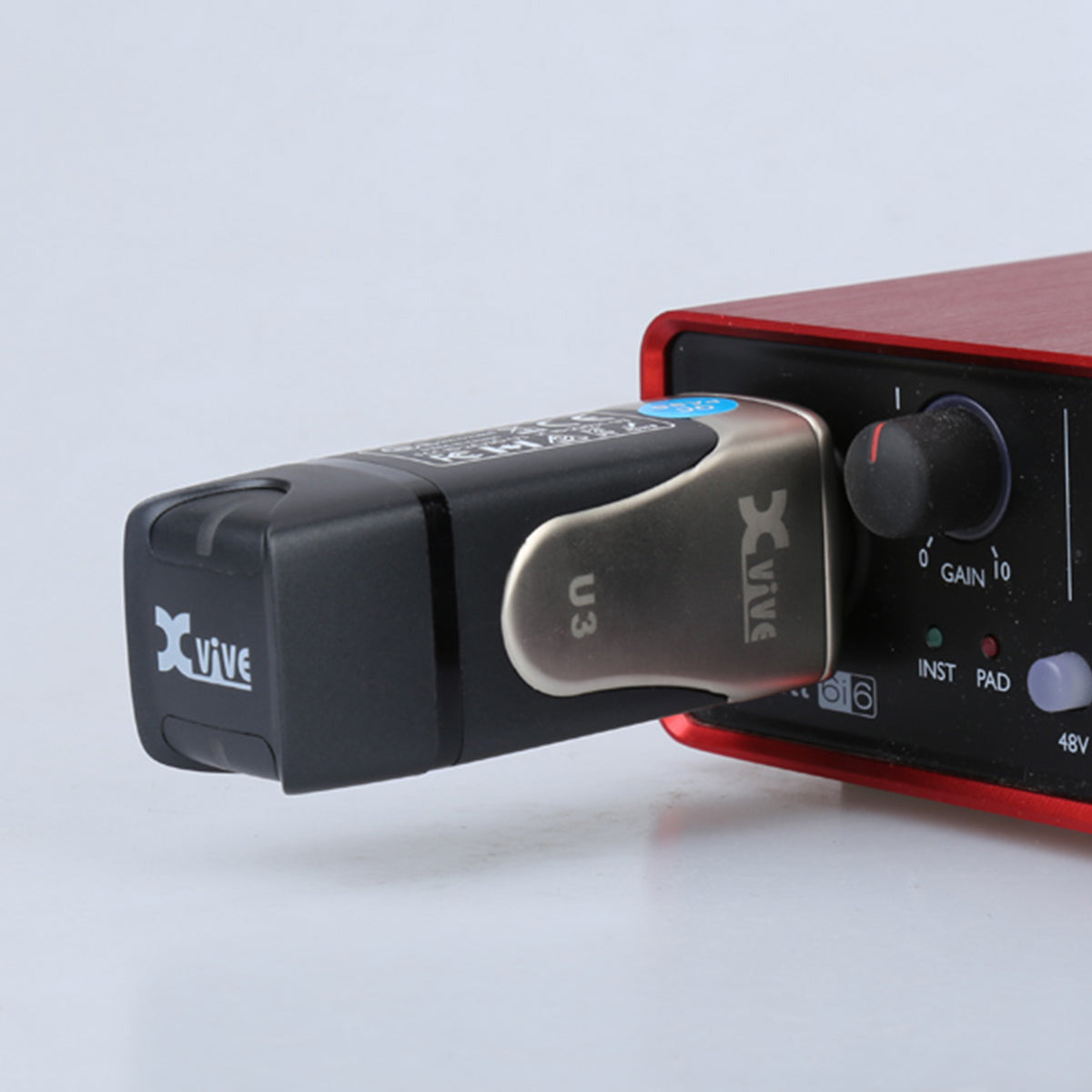

The U3R Receiver is designed for use with either the Xvive U3 Dynamic Microphone Wireless System or the U3C Condenser Microphone Wireless System. It can be used as a replacement or backup receiver; or, it can expand a U3/U3C system! Having two receivers connected to one U3T transmitter allows you to send a microphone signal wirelessly to two separate destinations—for example, a mixer and an audio recorder, or two powered monitors.
Note that when two U3R receivers are connected to one U3T transmitter, all three units must be set to the same wireless channel.

TECHNICAL SPECS

WIRELESS TYPE                                    2.4 GHz ISM worldwide open band

BIT DEPTH / SAMPLE RATE                  24-bit / 48 kHz
SWITCHABLE CHANNELS                      6
SIMULTANEOUS CHANNELS                6
FREQUENCY RESPONSE                       20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE                                110 dB (-3 dB)
SIGNAL-TO-NOISE RATIO                     110 dB
TOTAL HARMONIC DISTORTION          0.2%
LATENCY                                              5 ms

CONNECTOR                XLR (male)
DIMENSIONS               98 x 31 x 29 mm / 3.9" x 1.2" x 1.1"
WEIGHT                       92 g / 3.2 oz
